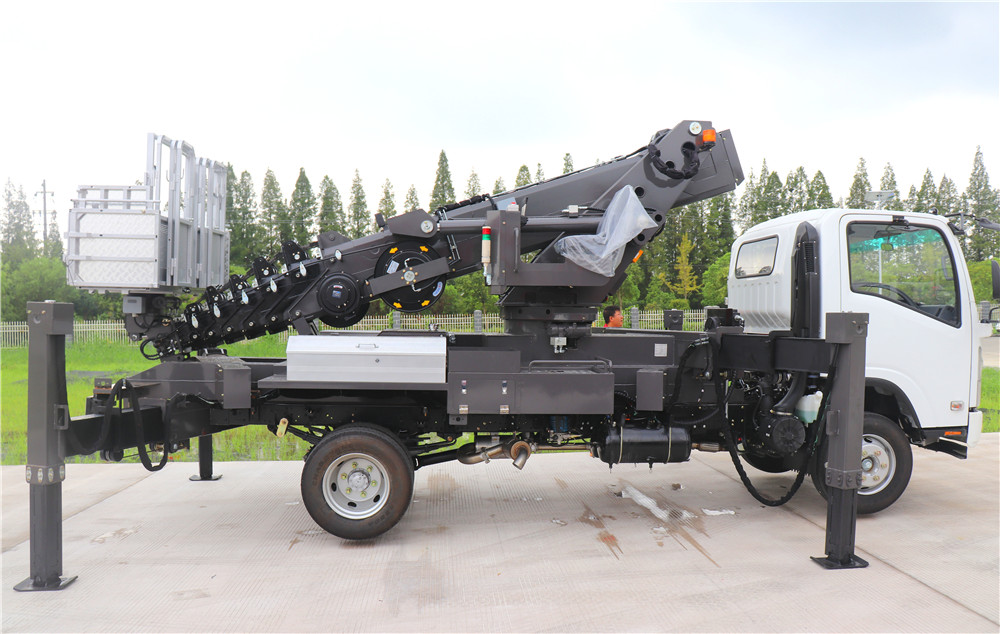

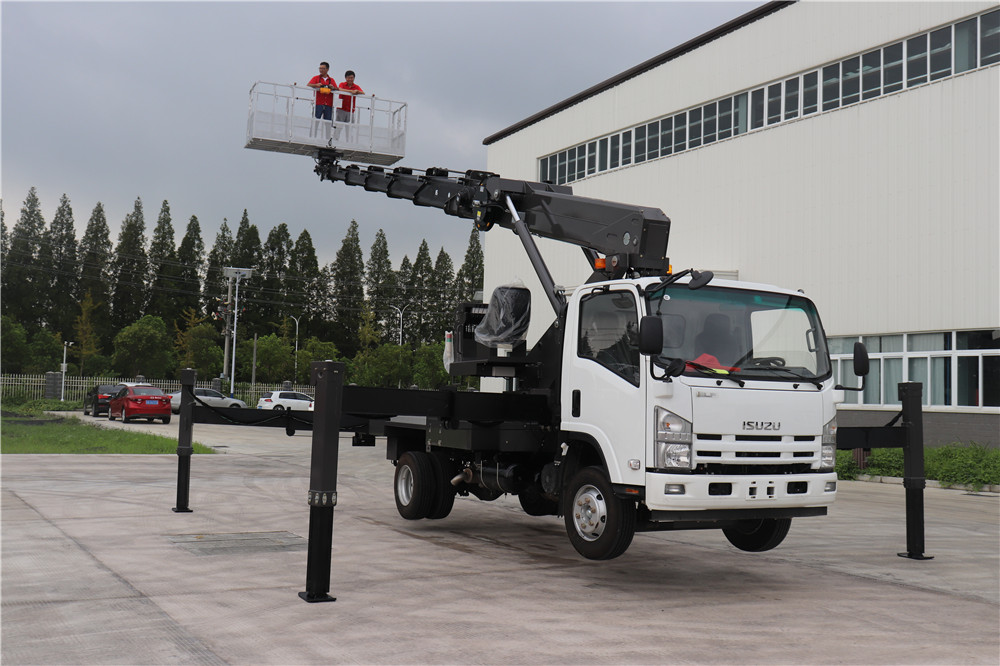

1 International leading seven-section telescopic boom structure, more stable telescopic, smaller external size 2 Tw
advantage
a.Professional
International leading multi-link arm + Chain telescoping technology, double luffing cylinder, double rotary reducer, strong power, effectively reduce jib shaking, more stable operation;
b.Hommization
The maximum working area can reach 2.8m^2 by using the expandable and multi-combination working platform of aluminum alloy. The multi-person cooperative operation is more efficient.
c.Intellectualization
The industry's advanced Danfoss AML control system, equipped with automatic limit range, leg off-ground protection, cab anti-collision protection and electric emergency pump functions, protects the operator's operation in an all-round way.
Standardized LCD display large screen, clear working conditions, easy operation, high safety.
argument
|
Operational Parameters |
|
|
Items |
Parameter |
|
Maximum operation height (mm) |
30000 |
|
Maximum platform height (mm) |
28300 |
|
Maximum rated load (kg) |
400 |
|
Maximum operating range (mm) |
20000 |
|
Elevation angle of the boom (°) |
-19-78 |
|
Rotation angle (°) |
±200 |
|
Rotation angle of cage (°) |
±360 |
|
Dimension and Weight Parameters |
|
|
Items |
Parameter |
|
Overall dimension (mm) |
≤7720*2200*3030 |
|
Axle base (mm) |
3815 |
|
Rear protraction (mm) |
565 |
|
Minimum turning diameter (mm) |
≤15 |
|
Approach angle/departure angle |
17/11 |
|
Gross mass (kg) |
8795 |
